WHAT IS COGENERATION?
The principle

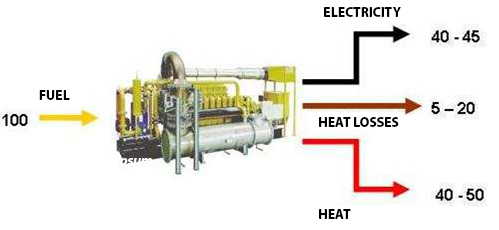

Cogeneration (Combined Heat and Power or CHP) is the simultaneous production of electricity and heat, both of which are used. The central and most fundamental principle of cogeneration is that, in order to maximise the many benefits that arise from it, systems should be based on the heat demand of the application. This can be an individual building, an industrial factory or a town/city served by district heat/cooling. Through the utilisation of the heat, the efficiency of a cogeneration plant can reach 90% or more.
Cogeneration therefore offers energy savings ranging between 15-40% when compared against the supply of electricity and heat from conventional power stations and boilers.
  Cogeneration optimises the energy supply to all types of consumers, with the following benefits for both users and society at large:

• Increased efficiency of energy conversion and use. Cogeneration is the most effective and efficient form of power generation.
• Lower emissions to the environment, in particular of CO2, the main greenhouse gas. Cogeneration is the single biggest solution to the Kyoto targets.
• Large cost savings, providing additional competitiveness for industrial and commercial users, and offering affordable heat for domestic users.
• An opportunity to move towards more decentralised forms of electricity generation, where plants are designed to meet the needs of local consumers, providing high efficiency, avoiding transmission losses and increasing flexibility of system use. This will particularly be the case if natural gas is the energy carrier.
• Improved local and general security of supply – local generation, through cogeneration, can reduce the risk of consumers being left without supplies of electricity and/or heating. In addition, the reduced need for fuel resulting from cogeneration reduces import dependency – helping to tackle a key challenge for Europe’s energy future.
• An opportunity to increase the diversity of generation plant, and provide competition in generation. Cogeneration provides one of the most important vehicles for promoting energy martket liberalisation.
• Increased employment – a number of studies have now concluded that the development of CHP systems is a generator of jobs.

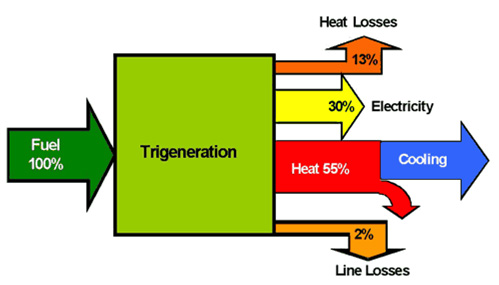

TRIGENERATION CYCLE
Cogeneration or combined heat and power (CHP) is the use of a heat engine[1] or power station to generate electricity and useful heat at the same time. Trigeneration or combined cooling, heat and power (CCHP) refers to the simultaneous generation of electricity and useful heating and cooling from the combustion of a fuel or a solar heat collector.

Cogeneration is a thermodynamically efficient use of fuel. In separate production of electricity, some energy must be discarded as waste heat, but in cogeneration some of this thermal energy is put to use. All thermal power plants emit heat during electricity generation, which can be released into the natural environment through cooling towers, flue gas, or by other means. In contrast, CHP captures some or all of the by-product for heating, either very close to the plant, or—especially in Scandinavia and Eastern Europe—as hot water for district heating with temperatures ranging from approximately 80 to 130 °C. This is also called combined heat and power district heating (CHPDH). Small CHP plants are an example of decentralized energy. By-product heat at moderate temperatures (100–180 °C, 212–356 °F) can also be used in absorption refrigerators for cooling.

The supply of high-temperature heat first drives a gas or steam turbine-powered generator and the resulting low-temperature waste heat is then used for water or space heating as described in cogeneration. At smaller scales (typically below 1 MW) a gas engine or diesel engine may be used. Trigeneration differs from cogeneration in that the waste heat is used for both heating and cooling, typically in an absorption refrigerator. CCHP systems can attain higher overall efficiencies than cogeneration or traditional power plants. In the United States, the application of trigeneration in buildings is called building cooling, heating and power (BCHP). Heating and cooling output may operate concurrently or alternately depending on need and system construction.

Cogeneration was practiced in some of the earliest installations of electrical generation. Before central stations distributed power, industries generating their own power used exhaust steam for process heating. Large office and apartment buildings, hotels and stores commonly generated their own power and used waste steam for building heat. Due to the high cost of early purchased power, these CHP operations continued for many years after utility electricity became available.
